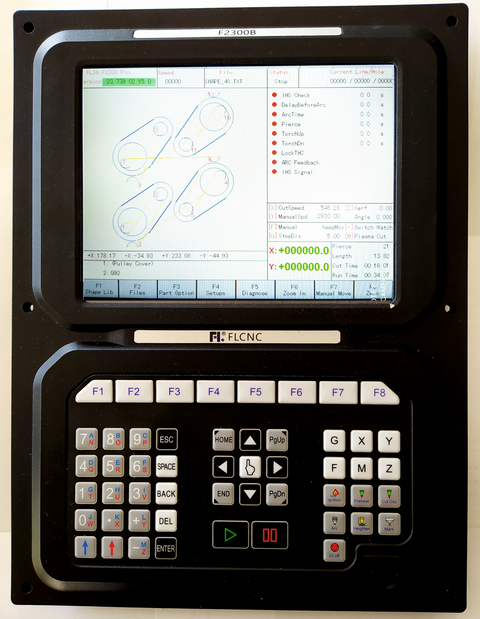

F2300 Interface



^ ^
Price F2300

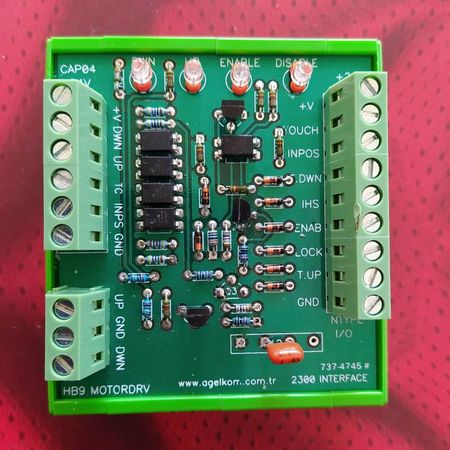

Cap04 Interface Card for Stand Alone Z axis



  • You do not need " T " models. You can use standart models for both, Plasma and Oxy-Fuel cutting.

  • Can be used for both Plasma and Oxy Cutting, with only 1pc Cap04 for both.

  • Our 2300 Interface can be used for all functions provided by F2300 (or similar models).

  • Crash Detection

  • IHS (Initial Height Sensing)

  • Lock (Height stays constant)



F2300 Interface Connections:

Outputs:

1- Inposition for IHS

2- Touch for Crash Detection



Inputs:

1- Manual Down

2- Manual Up

3- IHS Check

4- Enable

5- Lock



Motor Outputs: Up and Down with PWM, which makes the Z axis motion smooth (PWM  generated by Cap04)



  • During downward movement (by the operator), Torch never goes down for more than cutting level.

  • This is the most common operator's fault, for the Torch Crashing

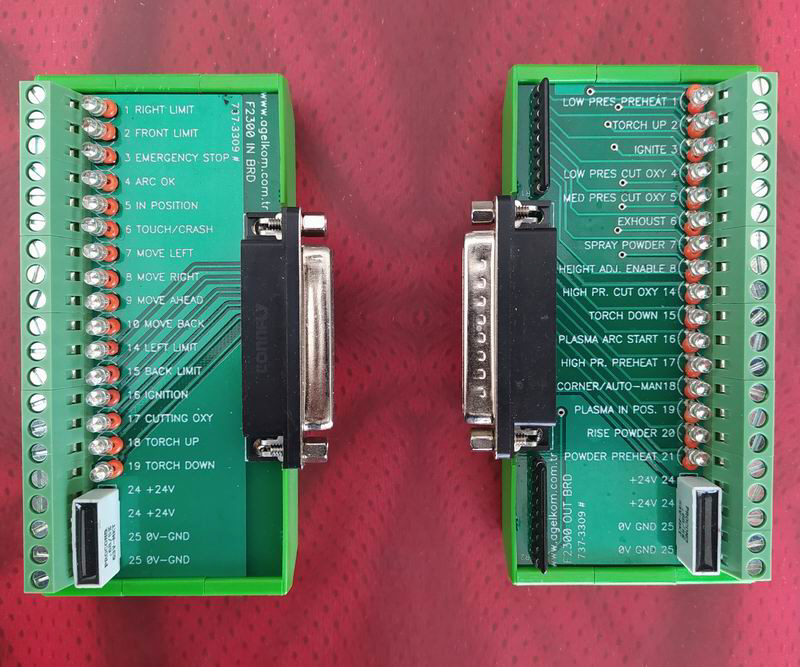

F2300 Input Card and Output Card with LEDs.



  • You can easily observe inputs and outputs status with LEDs.

  • You can add Inputs and Outputs without preparing new input and output cables after installation is finished.

  • It also helps wiring fault detection and for broken cables in a long time usage.

  • Output Card has CURRENT LIMITER to protect F2300 outputs

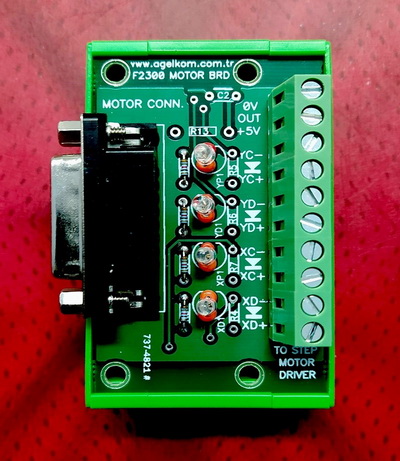

Differential Stepper Motor Interface Card with LEDs

  • You can use long cable to the Stepper Motor Driver without being affected by any electrical noise due to differential signals.

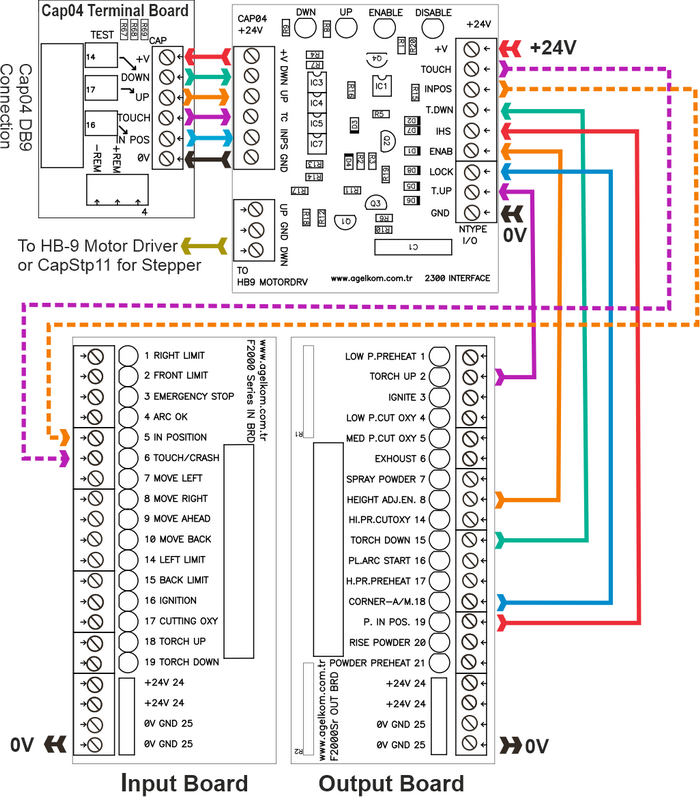

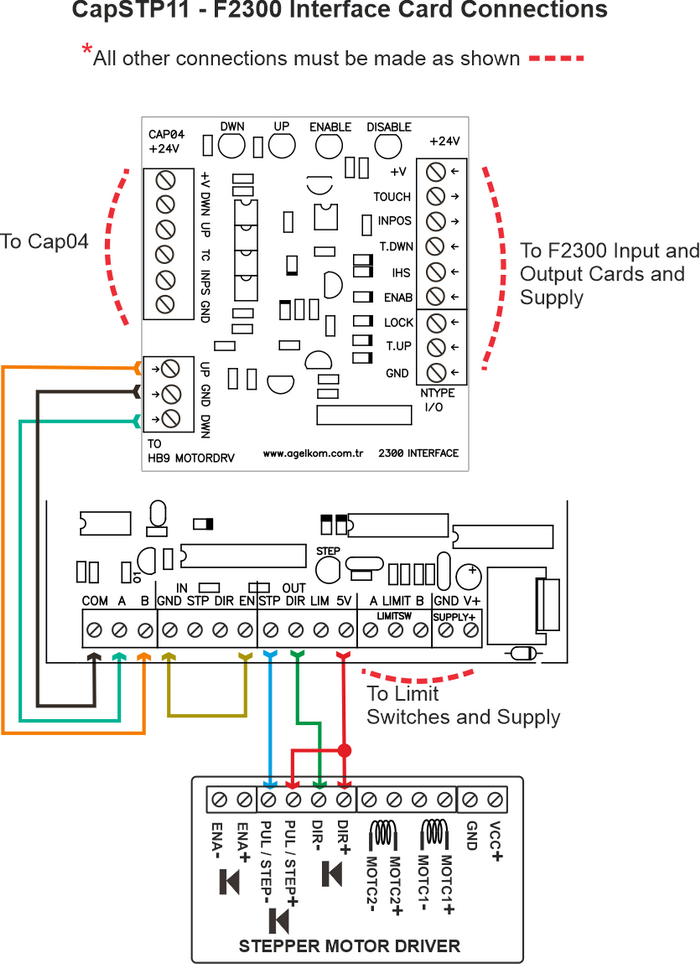

Wiring Schematic
