Stepper Motor Interface
Stepper Motor Interface Torch Motor Driver Stand Alone Interface Torch Lifter Interface



Up
Price

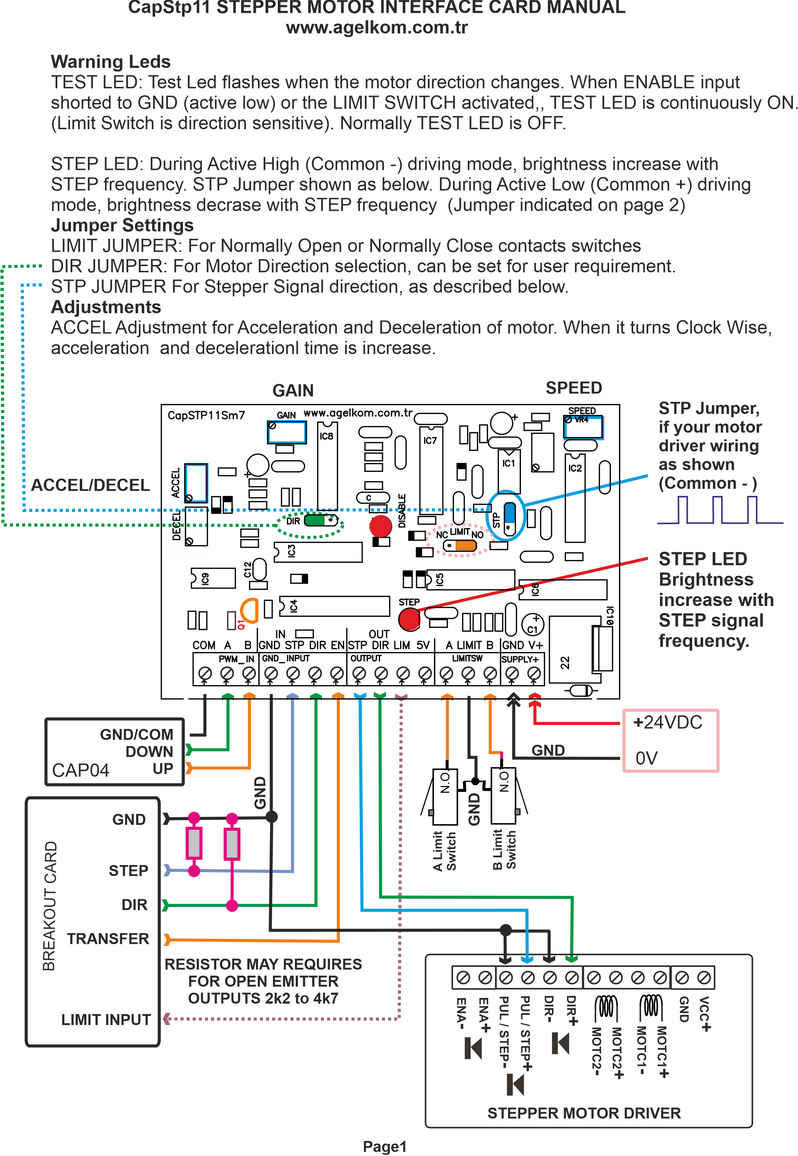

CAP-STP11 Stepper Controller

 Perfect Solution for Multi-Head Cutting





Stand Alone and Mach3 Controlled Z xis Screen



 INPUT configuration for Probe function:

Cap04 IN POSITION output >>>>connect to>>> INPUT 1 and defines as a PROBE also



The  other Inputs can be connected and defined as user request:

Ca04 DOWN output >>>>connect to>>> Mach3 THC Down input for LED.

Ca04 UP output >>>>connect to>>> Mach3 THC Up input for LED.





Output Configuration for ENABLE (DISABLE) signal:

For Transfer Switch function between Mach3 and CapSTP11 for Z axis control





The  other outputs connected as user request.







Rename your M3, M5,  or M03, M05 macros, then download M03, M05. macros to your  same "Macro" directory

(check your directory name if it is different)

M03_CapSTP11_335,zip Dowload and unzip, rename to M03.m1S

M05_CapSTP11_555 .zip  Download and unzip, ename to M05.m1S

Or download Macros ZIP File



Download  Screen Set file Plasma11ENG_step3.zip file, unzip and copy to \ Mach3 \.directory

Download CapSTP11 Manual.pdf file



Turkce Dosyalar

Yukarıdaki makro dosyalarını ilgili klasore kopyalayınız Orn: \ Mach3 \ Plazma.....



CapSTP11s_m3_trk.pdf Baglantı

CAPSTP11S_SEMA_TRK.pdf Baglantı

Cap04_hb02l9_capstp11_trk.pdf Baglantı



Ekran DOSYALARI:

PlasmaMain11_trk.jpg  dosyasını \ Mach3 \ Bitmap \ MillBitmaps .....klasörüne

Plasma11Trk_step3.zip  dosyasını indirip açın ve  \ Mach3 \....  klasörüne kopyalayın.



Asagıdaki dosyaları  \ Mach3 \ Bitmap \ MillBitmaps .....klasörüne kopyalayınız
