                               CAP-HB02L

                    STAND ALONE THC INTERFACE MODULE

                FOR MACH3 OR OTHER CONTROLLER SOFTWARE



  • You don't need any Z value on your G-Code, just put M3 and M5 codes between cuts

  • It only needs 1 or 2 inputs and 2 outputs on your Breakout Board.

  • No need for Mach3 Licence for THC operation.

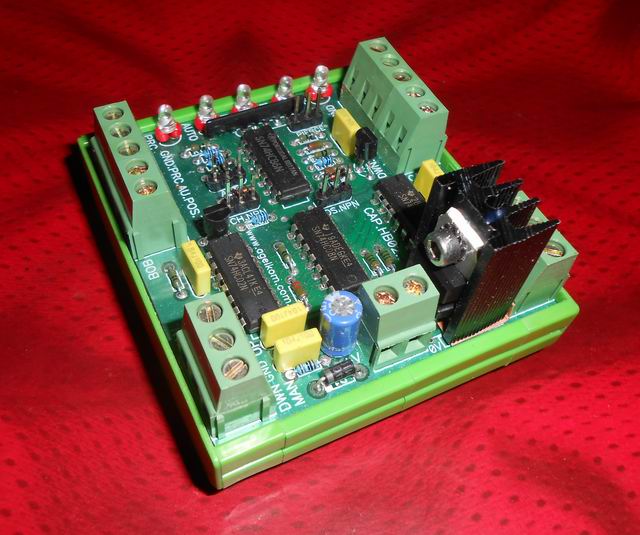

    New Card, with 5 LEDs. It helps for diagnostic and setup. Rail mounting, no need to drill your control box..















MACH3 SCREEN.

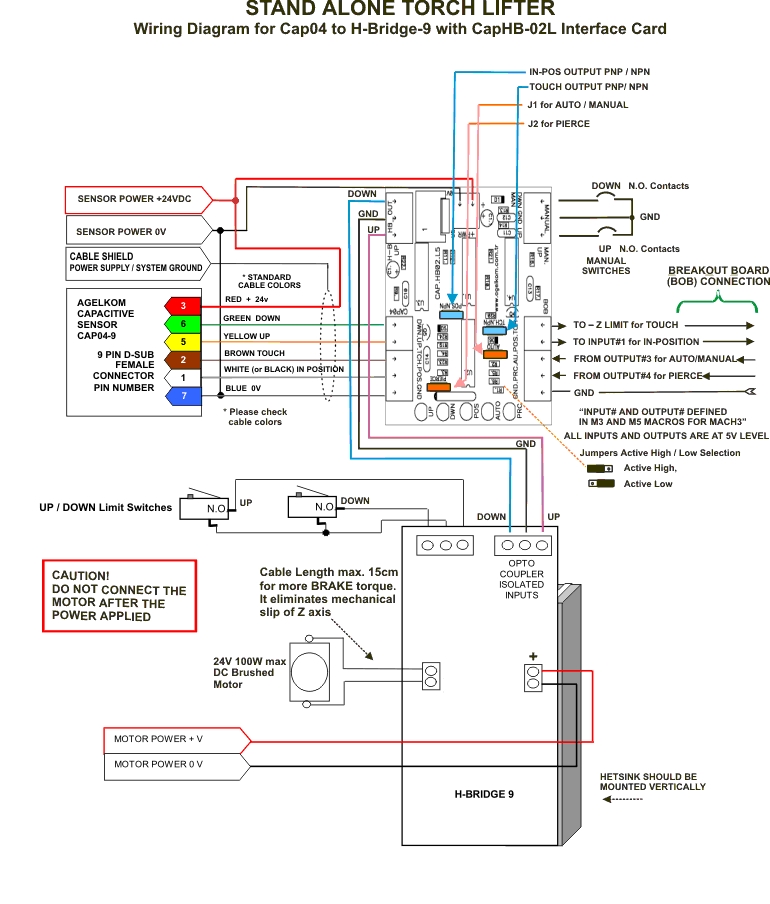

Z Axe controlled by CAP04 with CAP-HB02 and H-BRIDGE9





Mach3 Configuration Screens

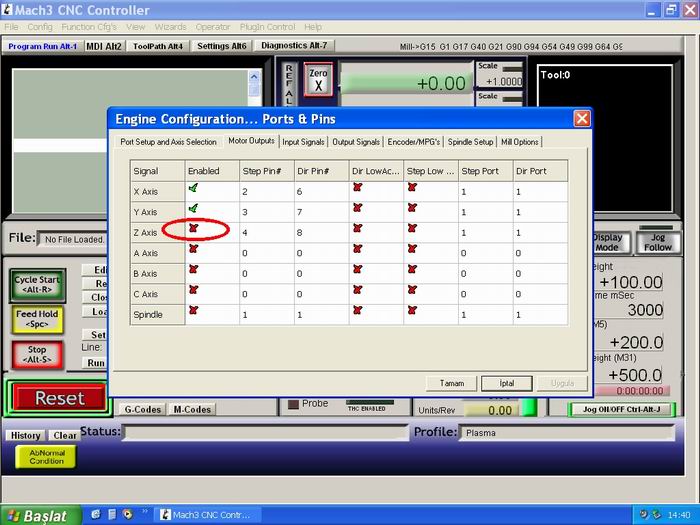

First, disable Z axis





Input Configuration.

Input1 for IN POSITION function in M3 macro, connect to CapHB02 IN POSITION output.

Enter available Port and Pin number according to your Breakout Board.



Output Configuration.

Output3 for AUTO function in M3 Macro,  connect to CapHB02 AUTO input.

Output4 for PIERCING function in M3 Macro,  connect to CapHB02 PIERCE intput

Enter available Port and Pin number according to your Breakout Board.

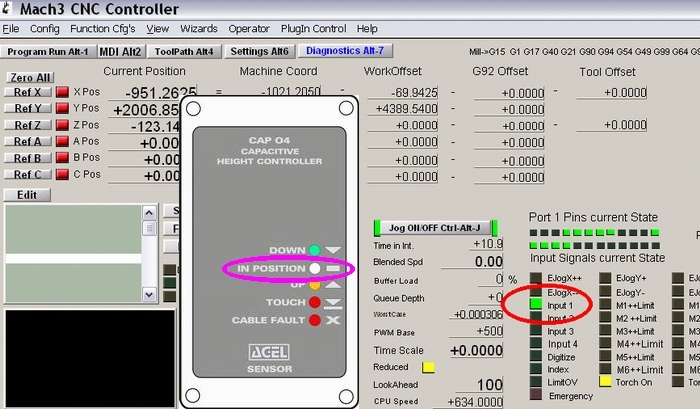

Diagnostic Screen:

Check  Input1 led synchronized with Cap04 IN POSITION led

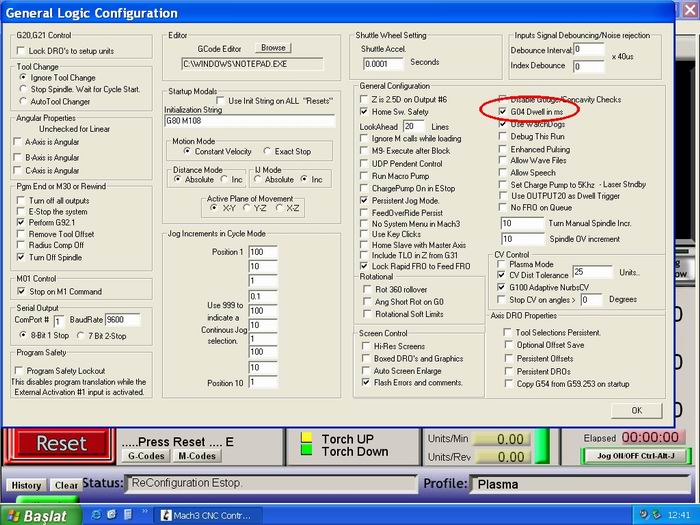

In GENERAL CONFIG section check "G04 Dwell.in ms" box

For Piercing Height and Time in M3 macro and

ELEVATON of TORCH level with M5 (between cuts) and M31 (for parking level)





 Copy PlasmaPath2, PlasmaMDI2, PlasmaMain2 files to

 \Mach3\Bitmap\MillBitmaps directory (check your directory name if it is different)


PlasmaPath2Download ZIP File

PlasmaMDI2 Download ZIP File

PlasmaMain2 Download ZIP File



Copy Plasma_SA5 screen set to your  \Mach3\*plasma* directory

(check your directory name if it is different)

Plasma_SA5 Download ZIP File



Rename your M3, M5, M31 macros, then download M3, M5. M31 macros to your  same "Macro" directory

(check your directory name if it is different)

M3, M5. M31 Macros Download ZIP File



G-CODE:

You don't need any Z value on your G-Code. Clear all G-Codes on your old files

Z axe moves automatically, just put M3 and M5 codes between cuts and put M31 end of your all cuts



................................................................





Turkce Mach3 programę (Turkce  yardim menusu) icin:



Mach3_Turkce  ZIP dosyasini indirin





Turkce Mach3 Ekrani icin



Mach3_TRK_Mustakil_Z_Eksen   ZIP dosyasini indirin

Plasma_SA5_TRK_3.set  dosyasini  C:\ Mach3 \ direktorun icine kopyalayin.

Geri kalan butun . jpg dosyalarini C:\ Mach3 \ Bitmaps \ Millbitmaps \  direktorun icine,

M3, M5. M31 Macros   Makro dosyalarini C:\ Mach3 \Macro \ direktorun icine kopyalayin.
