CAP01 PWM no longer be produced, CAP04 in-build PWM function is a replacement

  • Cap04 (PWM) allows you to reduce the Z axis speed when the torch too close at the cutting level. Therefore smooth movement at the cutting level can be obtained

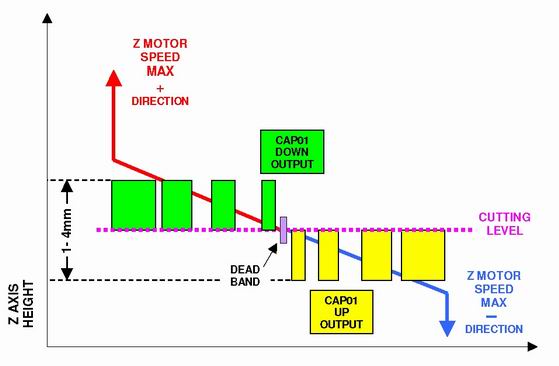

  • Cap04 outputs has PWM @ 500 Hz. The figure shows A and B outputs and motor direction respectively

  • Cap04 with H-Bridge-9 for reliable and low-cost solution for Stand-Alone Z axis applications.
  • Also operates with Mach3 software.
  • With Mach3, Cap04 gives the excellent result. Z axis speed is controlled automaticaly and moves smoothly.
